PVDF Lined-PTFE Lined Pumps

Get a Price/Quote

Product Details:

Head Size Up to 50 m
Speed Up to 2900 RPM
Discharge Pressure Up to 8 bar
Caliber DN 25 to DN 100
Theory Centrifugal
Control System Manual
Max Suction Up to 5 meters
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PVDF Lined-PTFE Lined Pumps Price And Quantity

PVDF Lined-PTFE Lined Pumps Product Specifications

Theory Centrifugal
Control System Manual
Max Suction Up to 5 meters
Fuel Type Electric
Features Corrosion resistance High efficiency Durable
Flow Rate Up to 200 m/hr
Priming Self-priming
Mounting Type Horizontal
Frequency 50 Hz
Power Up to 15 kW
Structure End suction design
Usage Industrial applications
Voltage 380V to 440V
Working Temperature Up to 120C
Inlet/Outlet Flanged
Pump Type Centrifugal Pump
Head Size Up to 50 m
Speed Up to 2900 RPM
Discharge Pressure Up to 8 bar
Suction Type Single suction
Application Chemical Processing Corrosive Liquid Transfer
Pressure Up to 8 bar
Material PVDF/PTFE lining
Seals Type Mechanical Seal
Caliber DN 25 to DN 100
Standard ISO/API standards

Product Description

Specification

Capacity : up to 100 m³/hr
Head : up to 60 mts
Temp 140°C
MOC : PVDF, FEP, PFA & PTFE LINED
Stuffing Box Sealing : Single / Double Seal
Application : Very high corrosive liquids with greater temperature, Chlorinated Solvents, Aromatic, Organic Compound, Alcohols, Ejector Systems Etc.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Naga Pumps' category

Utility Pumps Material : Cast Iron Theory : Centrifugal Theory, Other Usage : Other, Water Utility Power : Other, Placeholder Power Application : Other, General Utility Suction Type : Automatic Suction Pump Type : Other, Centrifugal Pump Standard : Placeholder Standard Seals Type : Mechanical Seal Features : Durable and reliable design Control System : Manual Inlet/Outlet : Placeholder Inlet/Outlet Working Temperature : Placeholder Working Temperature Voltage : 220V Structure : Other, Singlestage Priming : Selfpriming Mounting Type : Horizontal Frequency : 50 Hz Pressure : Other, Placeholder Pressure Speed : Placeholder Speed Discharge Pressure : Placeholder Discharge Pressure Head Size : Placeholder Head Size Caliber : Placeholder Caliber Fuel Type : Other, Electric Max Suction : Placeholder Max Suction Flow Rate : Placeholder Flow Rate

Send Inquiry

Self Priming Pumps Material : Cast Iron Theory : Other, Centrifugal Pump Theory Usage : Water Transfer, Other Power : Other, 3 HP Application : Other, Industrial Water Transfer Suction Type : Positive Suction Pump Type : Other, Centrifugal Pump Standard : ISI Standard Seals Type : Mechanical Seal Features : SelfPriming Compact Design Control System : Manual Control Inlet/Outlet : Specified Diameter Working Temperature : Ambient Temperature Voltage : 220240V Structure : Other, Durable and Compact Priming : Self Priming Mounting Type : Base Mounted Frequency : 50 Hz Pressure : Medium, Other Speed : 2900 RPM Discharge Pressure : Medium Pressure Head Size : Variable Head Size Caliber : Standard Caliber Fuel Type : Other, Electric Powered Max Suction : 10 meters Flow Rate : Moderate Flow Rate

Send Inquiry

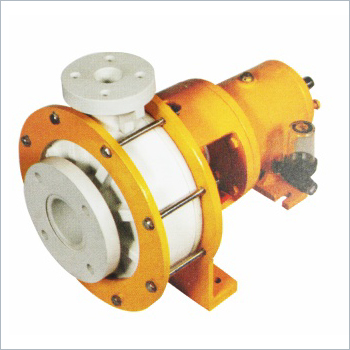

Polypropylene Pumps Material : Polypropylene Theory : Other, Centrifugal Usage : Other, Transfer of Corrosive Liquid Power : Electric Application : Other, Chemical Processing Suction Type : Side Suction Pump Type : Other, Centrifugal Pump Standard : Industry Standard Seals Type : Mechanical Seal Features : Corrosion Resistant High Durability Control System : Manual Inlet/Outlet : Flange Type Working Temperature : Ambient Voltage : 220240V Structure : Horizontal, Other Priming : Self Priming Mounting Type : Base Mounted Frequency : 50 Hz Pressure : Medium Pressure Speed : Standard Discharge Pressure : Medium Head Size : Standard Caliber : Standard Fuel Type : Other, None (Electric Powered) Max Suction : Good Flow Rate : Moderate
